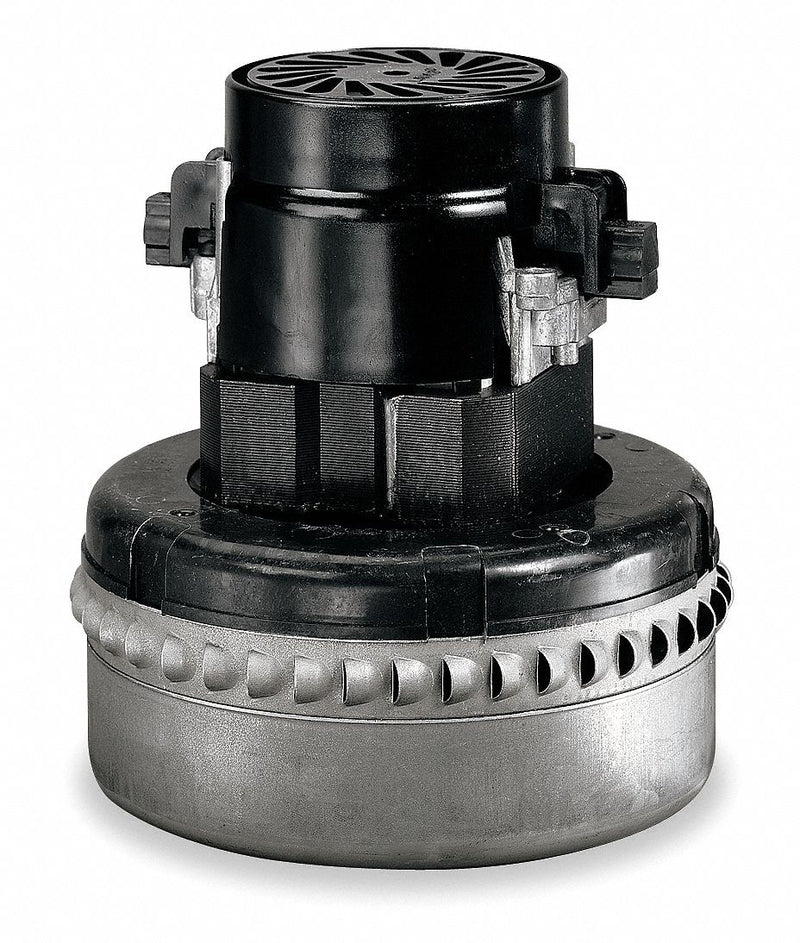

Ametek Lamb Peripheral Bypass Vacuum Motor, 5.7 in Body Dia., 24V DC Voltage, Blower Stages: 3 - 116514-13
filler
Availability : Usually Ships in 20-30 Business Days
Designed to move clean and dry air. Thermoset mounting brackets are ideal for light-duty applications. Air-sealed bearings provide added protection against dirt and moisture. Ideal for use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems.
| Item | Vacuum Motor |
| Motor/Blower Type | Bypass |
| Discharge | Peripheral Bypass |
| Blower Stages | 3 |
| No. of Speeds | 1 |
| Motor Enclosure Design | Open |
| CFM @ 2-In. Orifice | 69 |
| Vacuum (H2O Sealed) | 67.2 |
| Voltage | 24V DC |
| Phase | 1 |
| Max. Amps | 21 A |
| Max. Air Watts | 142 W |
| Motor Mounting Type | Lug |
| Motor Design | Universal AC/DC |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | A |
| Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Body Dia. | 5.7 in |
| Overall Height | 7 13/16 in |
| Mounting Brackets | Thermoset |
| Duty | Intermittent |
| Average Life | 500 hr |
| Standards | CSA Certified (LR31393), UL Recognized (E47185) |
| Replacement Brushes | Mfr. No. 833423-75 |
