Apollo Ball Valve, Bronze, Inline, 2-Piece, Pipe Size 1 1/2 in, Connection Type FNPT x FNPT - 7710701
filler
Availability : Usually Ships in 25 Business Days

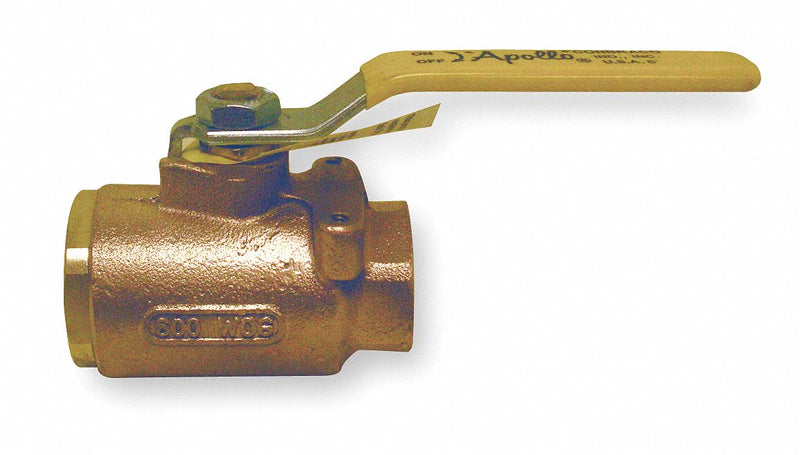

This Apollo ball valve is designed for easy actuator mounting or panel mounting where a high Cv value is required (Cv value is the gallons of water per minute that the valve will pass with a 1 psig pressure drop). Valve features ASTM B584 bronze body and an adjustable packing gland. Valve is suitable or use with water, oil, gas, and steam.
| Item | Ball Valve |
| Body Material | Bronze |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 1 1/2 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Max. Pressure | 600 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | Up to 500 Degrees F |
| Ball Material | Chrome Plated Bronze |
| Seat Material | RPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Zinc Plated Steel with Vinyl Grip |
| Stem Material | Brass |
| Body Seal Material | PTFE |
| Features | Mounting Pad for Actuation |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Bronze |
| Standards | MSS SP-110 |
| Overall Length | 10.37 in |
