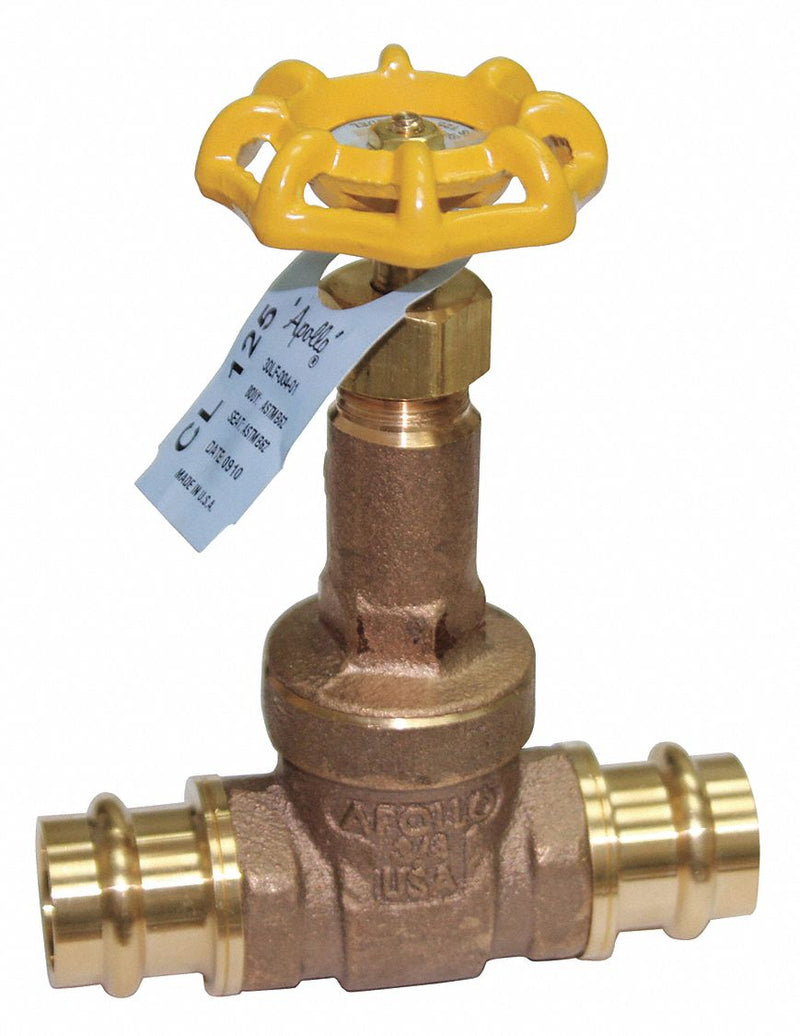

Apollo Gate Valve, Lead-Free Bronze, Press Connection Type, Pipe Size - Valves 1 1/4 in - 30LF03601PR
filler
Availability : Usually Ships in 25 Business Days
Gate Valve; Body Material - Valves: Lead-Free Bronze; Connection Type: Press; Pipe Size - Valves: 1 1/4 in; Max. Water Pressure - CWP: 200 psi; Valve Max. Fluid Temp.: 250 Degrees F; Valve Stem Type: Non-Rising; Top of Handle to Inlet Center: 8 3/32 in; Inlet to Outlet Length: 5 1/8 in; Stem Material: Bronze; Wedge Material: Bronze; Handle Material: Malleable Iron; Handle Type: Hand Wheel; Standards: ARRA, MSS SP 139, NSF /ANSI 61-8, NSF 372
| Item | Gate Valve |
| Body Material - Valves | Lead-Free Bronze |
| Connection Type | Press |
| Pipe Size - Valves | 1 1/4 in |
| Max. Water Pressure - CWP | 200 psi |
| Valve Max. Fluid Temp. | 250 Degrees F |
| Valve Stem Type | Non-Rising |
| Top of Handle to Inlet Center | 8 3/32 in |
| Inlet to Outlet Length | 5 1/8 in |
| Stem Material | Bronze |
| Wedge Material | Bronze |
| Handle Material | Malleable Iron |
| Handle Type | Hand Wheel |
| Standards | ARRA, MSS SP 139, NSF /ANSI 61-8, NSF 372 |
