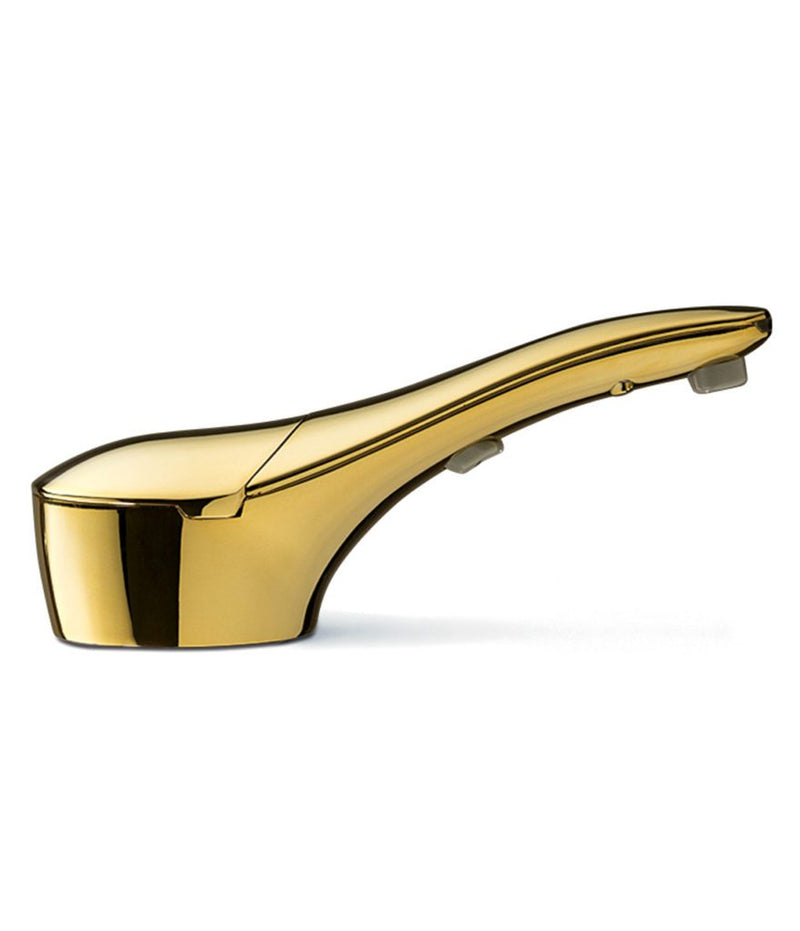

Automatic, “top fill”, “touch-free” Designer Series Soap dispenser with die-cast zinc body construction. Uses universal bulk foam soaps for significant cost-in-use savings. Dispenser offers a unique portion control feature that optimizes patron satisfaction with operating budget. Available in five different finishes (Polished Chrome, Polished Nickel, Brushed Nickel, Polished Brass and Matte Black).
6V AC Adapter — 6V AC Adapter with U.S. Plug comes standard.
Automatic faucet available in a matching finish. Adjustable time-out duration’s, line purging, adaptable sensor range, LEED flow-rate options.
Designers Note:

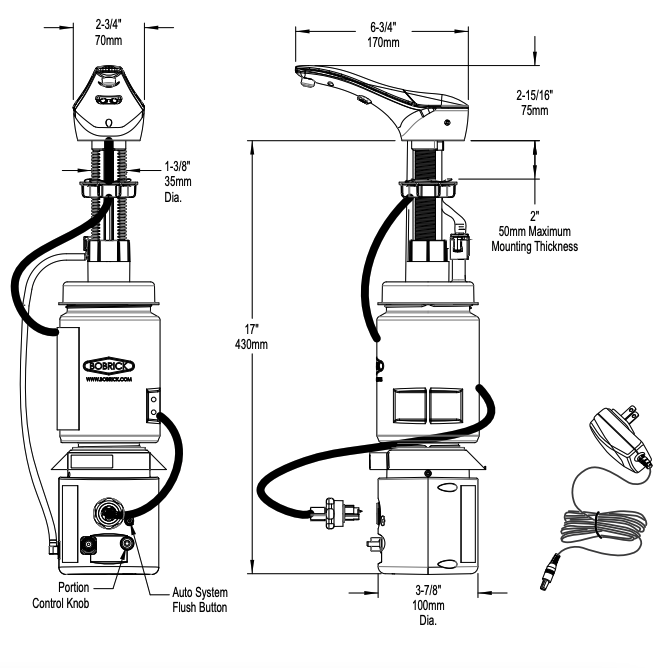

New installation – Ensure mounting hole is 1-3/8” (35mm) in diameter. Refer to installation instruction with mounting template link below.
Existing/Retrofit – Ensure mounting hole is 1-3/8” (35mm) in diameter, if necessary, enlarge opening using appropriate hole saw. Refer to installation instruction with mounting template link below.
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
