- Cross Reference: Waterway
- Features: 50 degree C ambient, Four thru bolts on 5.812 bolt circle, Includes slinger, Waterway replacemen

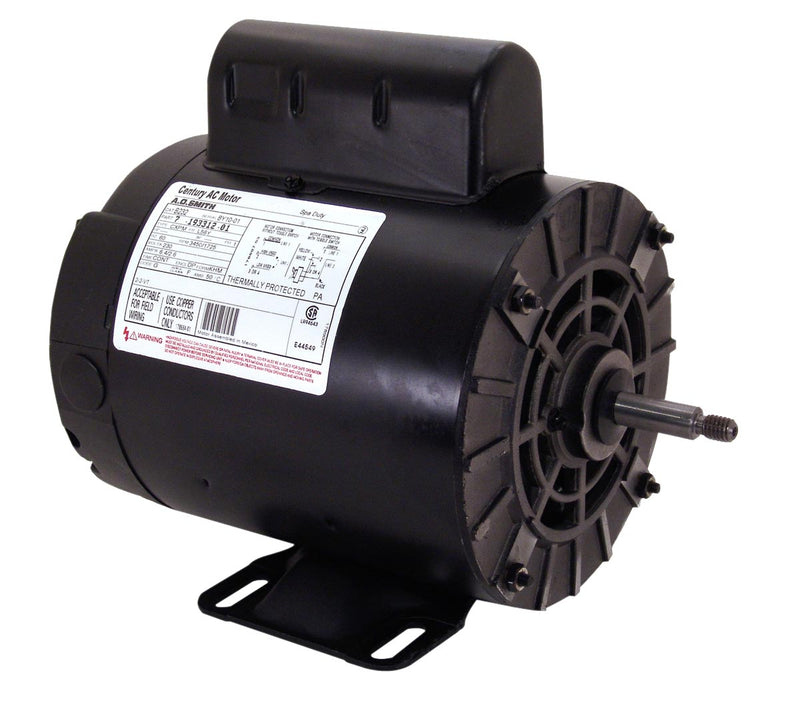

Item: Pool and Spa Pump Motor, Motor Type: PSC, HP: 5, Nameplate RPM: 3450, Voltage: 230, Frame: 56Y, Enclosure: Drip Proof, Hz: 60, Phase: 1, Speeds: 1, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 13.37, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.
| Item | Pool and Spa Pump Motor |
| Motor Type | PSC |
| HP | 5 |
| Nameplate RPM | 3450 |
| Voltage | 230 |
| Frame | 56Y |
| Enclosure | Drip Proof |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Insulation Class | B |
| Bearings | Ball |
| Base | Rigid |
| Shaft Type | Threaded |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Height | 3.5" |
| Shaft Dia. | 0.625" |
| "C" Dim | 13.37 |
| Protection | Auto |
| Thermal Protection | Yes |
| Cooling | Ambient |
