- Features: Service factor of 1 with non-sinusoidal wave forms, Suitable for constant torque operation from 15-60 Hz, variable torque from 10-60 Hz

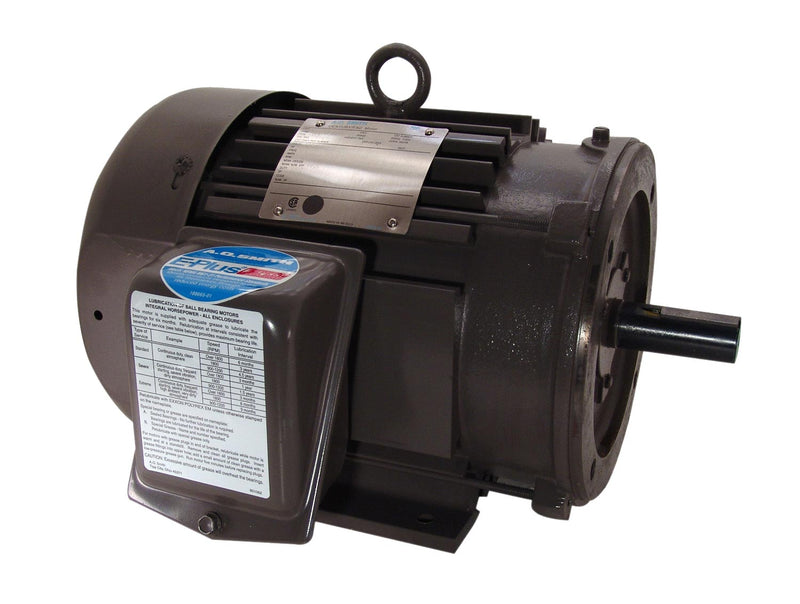

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 3, Nameplate RPM: 1800, Voltage: 230/460, Frame: 182TC, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.5", Shaft Height: 4.5", Shaft Dia.: 1.125", "C" Dim: 15.24, Protection: None, Thermal Protection: No, Cooling: Fan Cooled.
| Item | General Purpose AC Motor |
| Motor Type | 3-Phase |
| HP | 3 |
| Nameplate RPM | 1800 |
| Voltage | 230/460 |
| Frame | 182TC |
| Enclosure | Totally Enclosed |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 3 |
| Speeds | 1 |
| Service Factor | 1 |
| Insulation Class | B |
| Bearings | Ball |
| Base | Rigid |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 2.5" |
| Shaft Height | 4.5" |
| Shaft Dia. | 1.125" |
| "C" Dim | 15.24 |
| Protection | None |
| Thermal Protection | No |
| Cooling | Fan Cooled |
