- Features: 40 degree C ambient, 50-60 Hz
REPLACED AS CENTURY OB1024ES

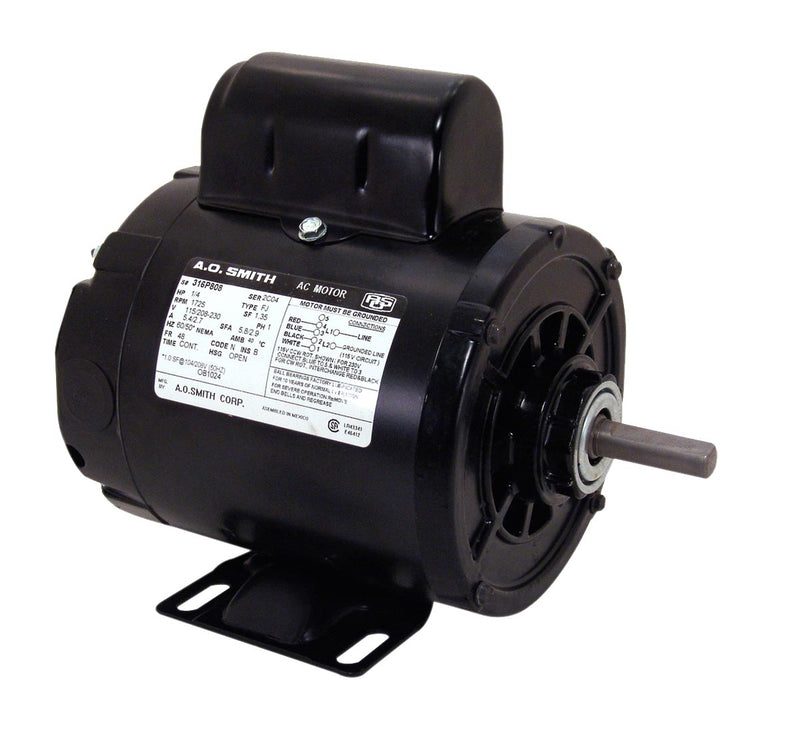

Item: Belt Drive Motor, Motor Type: Capacitor-Start, HP: 1/4, Nameplate RPM: 1725, Voltage: 115/208-230, Frame: 48, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 50, 60, Phase: 1, Speeds: 1, Service Factor: 1.35, Insulation Class: B, Bearings: Ball, Base: Resilient, Shaft Type: Flat, Shaft Number: 1, Shaft Length: 1.625", Shaft Height: 3", Shaft Dia.: 0.5", "C" Dim: 9.4, Protection: None, Thermal Protection: No, Cooling: Ambient.
| Item | Belt Drive Motor |
| Motor Type | Capacitor-Start |
| HP | 1/4 |
| Nameplate RPM | 1725 |
| Voltage | 115/208-230 |
| Frame | 48 |
| Enclosure | Drip Proof |
| Rotation | CW/CCW |
| Hz | 50, 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1.35 |
| Insulation Class | B |
| Bearings | Ball |
| Base | Resilient |
| Shaft Type | Flat |
| Shaft Number | 1 |
| Shaft Length | 1.625" |
| Shaft Height | 3" |
| Shaft Dia. | 0.5" |
| "C" Dim | 9.4 |
| Protection | None |
| Thermal Protection | No |
| Cooling | Ambient |
