Dayton 115VAC Shaded Pole Parallel Shaft gearmotor can be used in a variety of applications. Delivers up to 113 in.-lb. of torque. Features porous bronze sleeve on case; ball on motor. Designed for all-position mounting. Has clockwise facing output shaft. Grease filled lubrication on gears extended service life. Open, fan-cooled with no brake.
| Item | AC Gearmotor |
| Gearmotor Type | AC Gearmotor |
| Gearmotor Voltage | 115V AC |
| Gearmotor Phase | 1 |
| Max. Torque | 59 in-lb |
| Gearmotor Shaft Type | Single |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Rotation | CW |
| Nameplate RPM | 60 RPM |
| Gearmotor Enclosure | Open |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Brake Type | None |

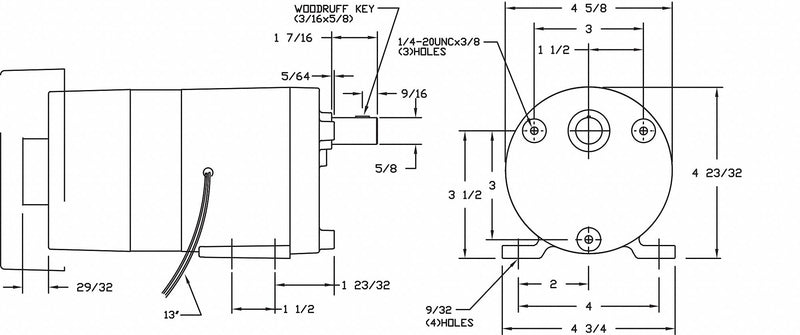

| Length Less Shaft | 7 7/8 in |
| Hz | 60 Hz |
| Reversible Shaft Output | No |
| Overhung Load | 150 lb |
| Input HP | 1/10 hp |
| Gear Ratio | 1 |
| Full Load Amps | 2.6 |
| Insulation Class | B |
| Thermal Protection | None |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Type | Shaded Pole |
| Shaft Dia. (Dimension U) | 5/8 in |
| Shaft Length (Dimension V) | 1.5 in_x000D_ |
| Keyway Size Type | #605 Woodruff Key |
| Bearings | Porous Bronze Sleeve on Case, Ball on Motor |
| Lubrication | Grease Filled |
| Finish | Unpainted |
| Housing | Die Cast Zinc |
| Gear Case Material | Die Cast Zinc |
| Gears | Acetyl/Steel |
| Gear Material | Acetyl/Steel |
| Seals | Lip Type on Output Shaft |
| Standards | CSA Certified, UL Recognized |
