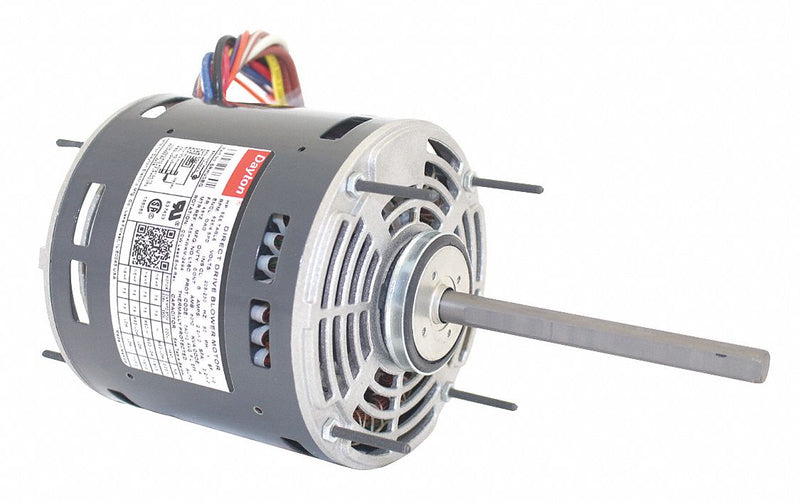

Multi-HP PSC Direct-Drive/Fan Multi-Speed Motors,NEMA frame: 48YZ (5-5/8" body dia.) Enclosure: open air-over Mounting: ring/stud/band Service factor: 1.0 Insulation: Class B Thermal protection: auto Shaft orientation: all-angle Rotation: CW/CCW Duty: continuous,Energy-efficient motors operate at multiple horsepowers, reducing inventory needs and expense. Feature quick-change reversing plug.,UL Recognized and CSA Certified.
| Item | Direct Drive Blower Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| HP | 3/4 to 1/5 |
| Nameplate RPM | 1075 |
| Voltage | 115 |
| Full Load Amps | 8.7-2.4 |
| Hz | 60 |
| Phase | 1 |
| Frame | 48YZ |
| Motor Service Factor | 1 |
| Max. Ambient Temp. | 60 Degrees C |
| Ins. Class | B |
| Duty | Continuous |
| No. of Speeds | 4 |
| Motor Mounting Type | Stud |
| Motor Mounting Position | All Angle |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CW/CCW |
| Nominal Efficiency | 58 % |
| Body Dia. | 5 5/8 in |
| Length Less Shaft | 5 7/8 in |
| Overall Length | 10 7/8 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 5 in |
| Motor Shaft Design | Flat |
| Capacitor Required | 2MDV6, 2MDV7 |
| Resilient Ring Dia. | 2 3/16 in |
| Ring to Ring Center | 5 3/16 in |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Bolt Circle Dia. | 5 1/8 in |
| Standards | CSA Certified (244617), UL Recognized (E37403) |
| Application | Blowers, Fans and Air Circulators |
| Voltage Compatibility | 115, 120 |
