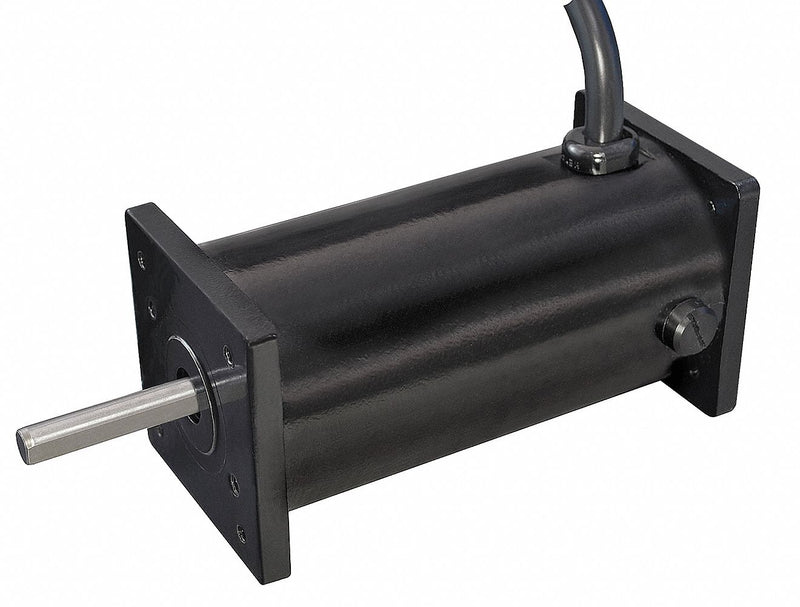

Use this permanent magnet motor with Type K DC rectified power sources matched to voltage (providing form factor does not exceed 1.3).
| Item | DC Permanent Magnet Motor |
| Motor Application | Variable Speed |
| Motor Design | DC Permanent Magnet |
| HP | 1/27 |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Nameplate RPM | 1800 |
| Voltage | 90V DC |
| Full Load Amps | 0.5 A |
| Full Load Torque | 1.3 in-lb |
| Frame | Non-Standard |
| Motor Mounting Type | Face/Base |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Bearings | Ball |
| Max. Ambient Temp. | 40 Degrees C |
| Rotation | CW/CCW |
| Overall Length | 6 7/16 in |
| Length Less Shaft | 4 15/16 in |
| Shaft Dia. | 5/16 in |
| Shaft Length | 1 1/2 in |
| Base Mounting O.C. | 4-11/16 x 1-1/4 in |
| Face Mounting O.C. | 1-3/4 x 1-3/4 |
| Brush Type | External |
| Standards | UL Recognized (E61772) |
| Voltage Compatibility | 90V DC |
