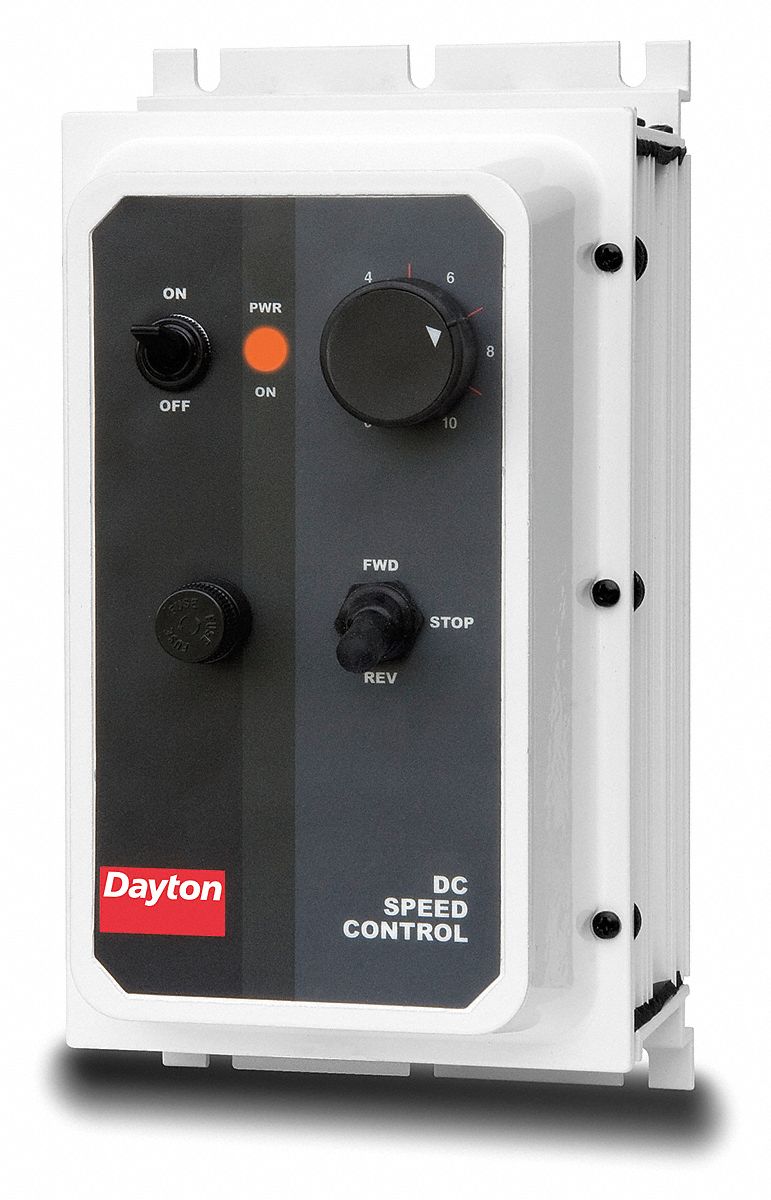

The Dayton line of enclosed, adjustable speed, DC motor controls are used for applications requiring constant or diminishing torque. It is designed to operate only one DC motor. The controls are a general purpose, economical variable speed control for DC and universal motor applications. They feature dual input voltages 120/240 VAC, power On/Off toggle switch, adjustable trimpot settings, terminal block connections, and packaged in a rugged Nema enclosure.
| Item | DC Speed Control |
| Enclosure | NEMA 4/12 |
| Max. Amps | 10 A |
| Voltage Output | 0 to 90/180V DC |
| Speed Range | 1 |
| Rotation | Reversable |
| External Switches | ON/OFF, FWD/STOP/REV |
| AC Input Voltage | 120/240V AC |
| DC Speed Control | SCR |
| HP @ Lower Volts | 1/8 to 1 |
| HP @ Higher Volts | 1/4 to 2 |
| Linear Acceleration | Fixed 1 to 3 sec |
| Linear Deceleration | Fixed 0.5 sec |
| Current/Torque Limit | Adjustable |
| Speed Regulation | +/-1% of Motor Base Speed |
| Shunt Wound Volts | 100/200V DC |
| Accepts Tach Feedback | Yes |
| Dynamic Braking | Yes |
| Power On Light | Yes |
| IR Compensation | Adjustable |
| Mount Type | Wall |
| Height | 9.5 in |
| Depth | 5.5 in |
| Width | 5 in |
| Operating Temp. | -10 Degrees to 45 Degrees C |
| For Use With | For Packaging Equipment, Pumps, Fans, Blowers, Conveyors and Other Constant or Diminishing Torque |
| Standards | cULus Listed |
| Includes | Built-in Transient and Surge Suppression, Run/Stop Switch |
