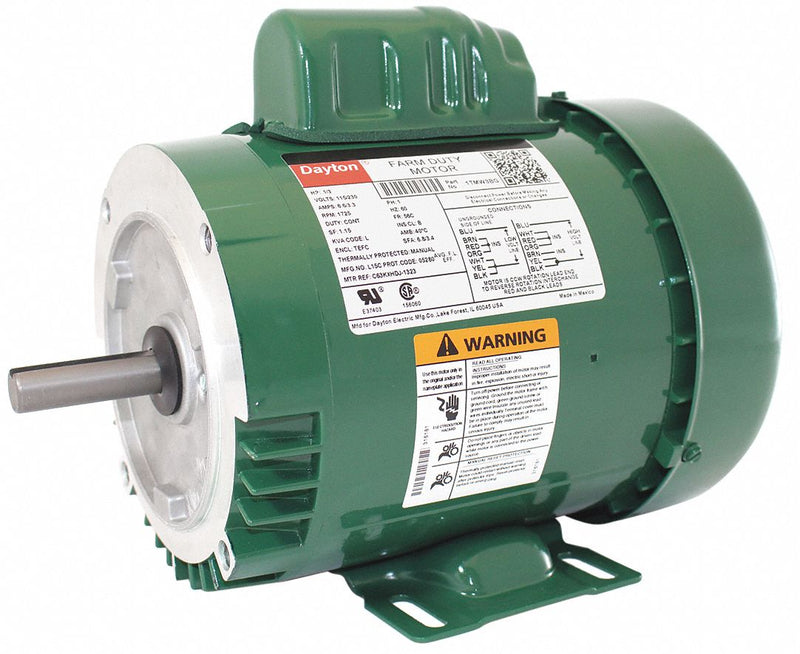

For use in high-torque installations, such as conveyors, silo unloaders, barn cleaners, compressors, and manure pumps, this motor is designed to be durable and powerful. The high-torque design enables it to start under heavy load conditions. A capacitor cover, gasketed conduit box, and rubber boot over the manual protector reset button help seal the motor against weather and contaminants. Shaft slinger included. The totally enclosed, fan-cooled motor design also helps keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.
| Item - Farm Duty Motors | High Torque Farm Duty Motor |
| Motor Application | Farm Duty |
| Motor Sub Application | High Torque |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/3 |
| Nameplate RPM | 1725 |
| Frame | 56C |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 115/230 |
| Full Load Amps | 6.6/3.3 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Finish | Enamel |
| Motor Thermal Protection | Manual |
| Motor Service Factor | 1.15 |
| Max. Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Motor Shaft Design | Keyed |
| Length Less Shaft | 9 in |
| Overall Length | 10 7/8 in |
| Ins. Class | B |
| Capacitor Required | Included |
| Duty | Continuous |
| Nominal Efficiency | 57.5 % |
| Includes | Gasketed Conduit Box, Removable Base, Shaft Key, Shaft Slinger |
| Standards | CSA Certified (258501), UL Recognized (E37403) |
| Item | High Torque Farm Duty Motor |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
