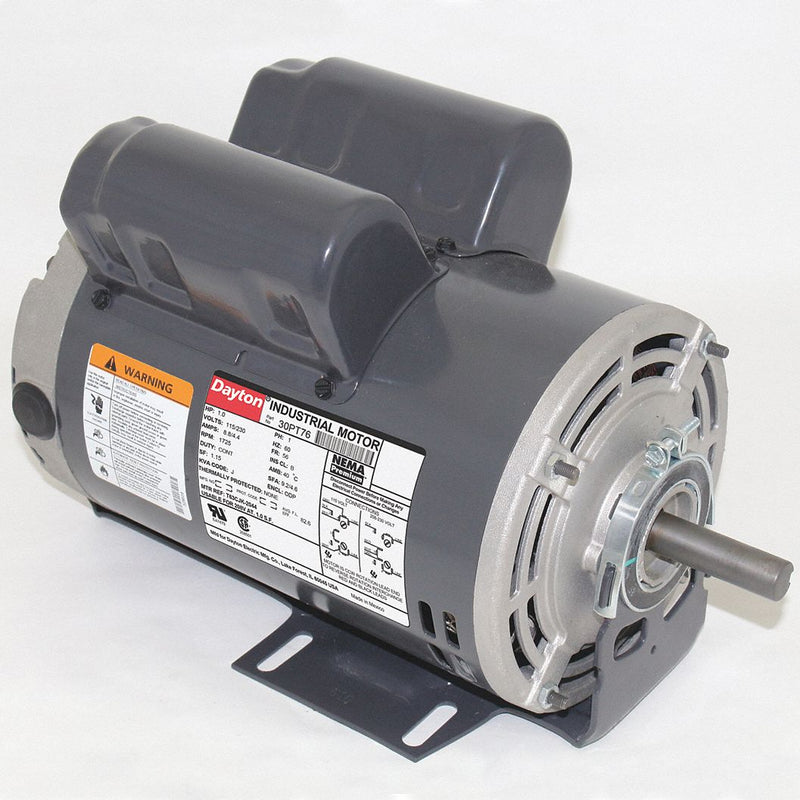

Motor complies with 2015 efficiency legislation for small-frame motors. 40C max. ambient temperature.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 1 |
| Nameplate RPM | 1725 |
| Frame | 56 |
| Voltage | 115/230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 8.8/4.4 |
| No. of Speeds | 1 |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 10 3/8 in |
| Overall Length | 12 5/16 in |
| Motor Shaft Design | Keyed |
| Standards | CSA (258501), UL (E47479) |
| Duty | Continuous |
| Motor Efficiency Group | Premium Efficient |
| Nominal Efficiency | 82.6 % |
| Inverter Rated | No |
| Includes | Start Cap 710MFD @ 125V |
| Manufacturers Warranty Length | 1 yr |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Green Certification or Other Recognition | Energy Aware Certified |
