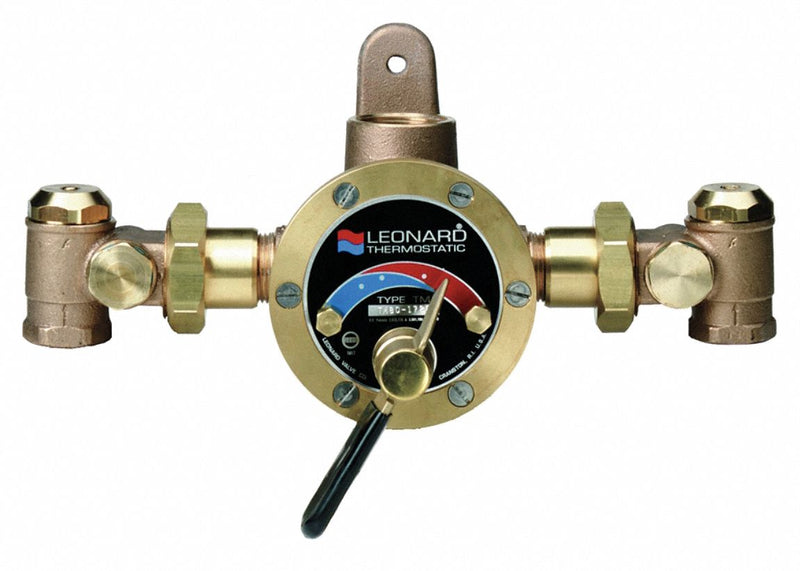

Leonard 3/4 in FNPT Inlet Type Steam and Water Mixing Valve, Lead Free Rough Bronze, 27 gpm - TMS-25-RF
Availability : Usually Ships in 5 Business Days
With a locked temperature adjustment cap to help prevent tampering, this LEONARD VALVE steam and water mixing valve provides thermostatic mixing to maintain output water temperature for industrial steam mixing applications. Model has copper encapsulated thermostat assembly with polymer thermoplastic shuttle.,Stainless steel springs for long life,Integral check valves on hot and cold inlets,Note: This valve's Inlet Temperature is for both steam and hot water.
| Item | Steam and Water Mixing Valve |
| Body Material | Lead Free Rough Bronze |
| Flow Rate | 27 gpm |
| Inlet Type | FNPT |
| Outlet Type | FNPT |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Temp. Range | 65 Degrees to 140 Degrees F |
| Max. Pressure | 80 psi |
| Overall Height | 7 1/2 in |
| Overall Width | 12 in |
| Inlet Temperature (Hot) | 120 Degrees to 200 Degrees F |
