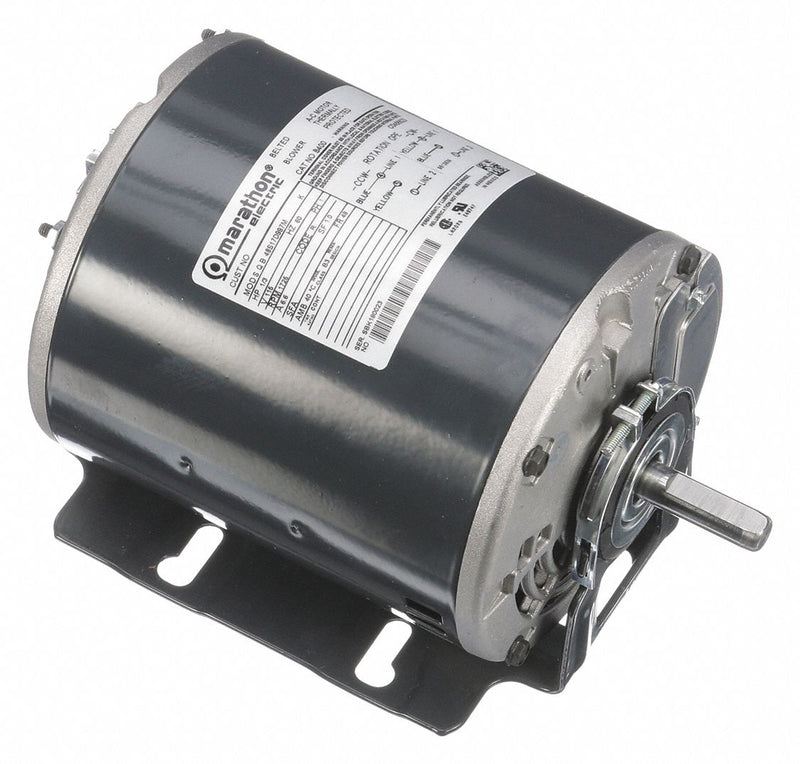

| Item | Belt Drive Motor |
| Motor Application | HVAC/R |
| Motor Design | Split-Phase |
| HP | 1/3 |
| No. of Speeds | 1 |
| Nameplate RPM | 1725 |
| Voltage | 115 |
| Frame | 48 |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | All Angle |
| Hz | 60 |
| Full Load Amps | 6.6 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Flat |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 1/2 in |
| Length Less Shaft | 8 1/2 in |
| Overall Length | 10 1/2 in |
| Body Dia. | 5 1/2 in |
| Resilient Ring Dia. | 2 1/4 in |
| Ring to Ring Center | 7 5/16 in |
| Nominal Efficiency | 61.5 |
| Duty | Continuous |
| Phase | 1 |
| Standards | CSA Certified (701887), UL Recognized (E37403) |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240 |
