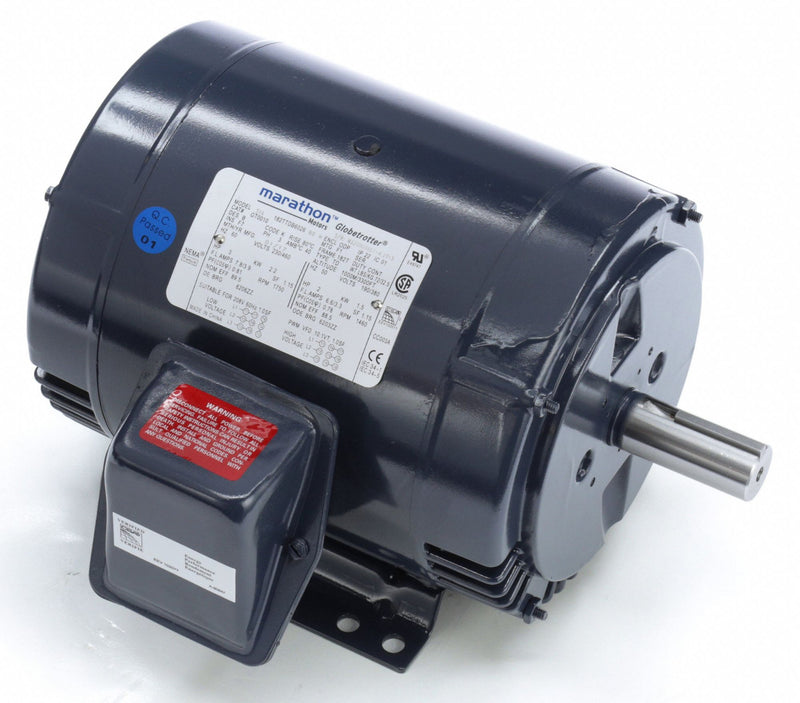

Designed for mechanical loads, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps, this general purpose motor helps keep equipment moving. It features an open dripproof motor enclosure design.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 3 |
| Nameplate RPM | 1750 |
| Frame | 182T |
| Voltage | 230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 8.4-7.8/3.9 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 3/4 in |
| Length Less Shaft | 11 in |
| Overall Length | 13 3/4 in |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA (LR2025), UL (E49747) |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 86.5 % |
| CC Number | CC003A |
| Inverter Rated | Yes |
| Includes | Conduit Box |
| Manufacturers Warranty Length | 1 yr |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
