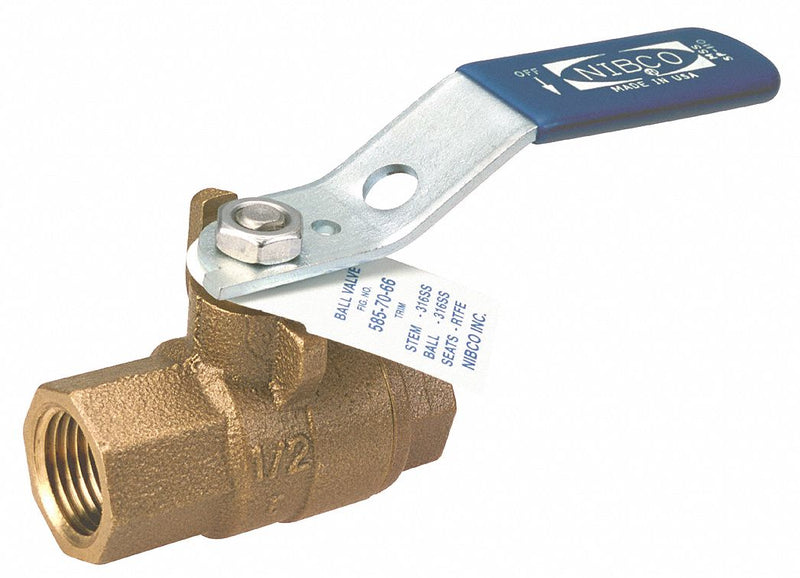

Bronze is an alloy consisting of copper and mostly tin, but can also include other metals such as aluminum, manganese, or phosphorous. This bronze valve is harder than brass, and can resist corrosion and metal fatigue better than steel.
| Item | Ball Valve |
| Body Material | Bronze |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 3/8 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Max. Pressure | 600 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | -20 Degrees to 400 Degrees F |
| Ball Material | 316 Stainless Steel |
| Seat Material | RPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Zinc Plated Steel Clear Chromate Plastisol Coated |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | PTFE |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Bronze |
| Standards | MSS SP-110 |
| Overall Length | 4.9 in |
