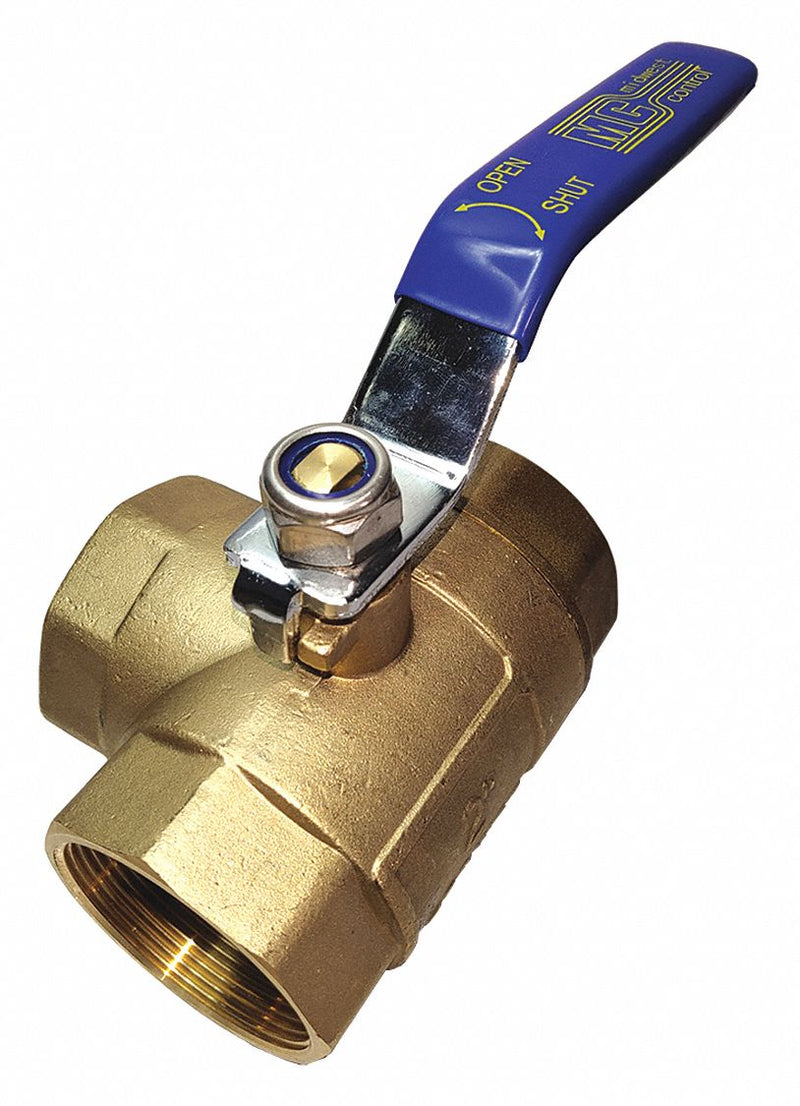

3-Way Brass Ball Valves, Max. pressure: 600 psi WOG Max. steam pressure: 100 psi WSP Temp. range: -4 to 350,3-way diversion valves with L flow pattern are ideal for tank selection and help simplify fluid transfers. The middle port is common and can divert to the left or right port. Reposition the handle for additional flow patterns. 2-pc., standard-port with PTFE seats, brass body, chrome-plated brass ball and stem, and a steel lever handle with vinyl grip. Blowoutproof stem.
| Item | Ball Valve |
| Body Material | Brass |
| Body Style | 3-Way |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 1 in |
| Connection Type | FNPT x FNPT x FNPT |
| Port | Standard |
| Max. Pressure | 600 psi CWP |
| Temp. Range | -40 Degrees to 350 Degrees F |
| Ball Material | Chrome Plated Brass |
| Seat Material | PTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Steel with Vinyl Grip |
| Stem Material | Brass |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Brass |
