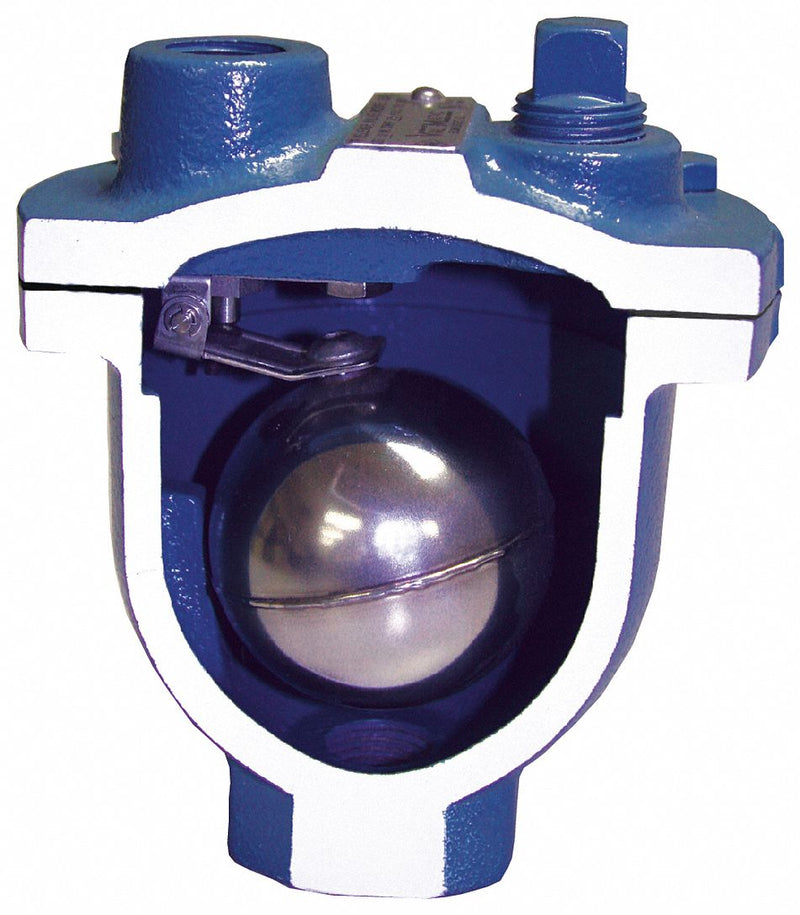

Air Release and Air Vacuum Valves, Max. temp.: 250F Vacuum pressure: 29 Hg FNPT connection,Cast-iron construction. Float and internal components are 316 stainless steel.,Air Release Valves,Resilient seal for positive shutoff. Nonclogging design helps eliminate backwash. Releases pockets of accumulated air in a pressurized water system. Suitable for use in water distribution and transmission fire pumps, pressure filters, and hydropneumatic tools.
| Item | Air Release Valve |
| Inlet Size | 3/4 in |
| Outlet Size | 1/2 in |
| Application | Clean Water |
| Min. Pressure | 5 psi |
| Max. Pressure | 175 psi |
| Max. Vent Capacity | 6 scfm at 150 psi |
| Connection Type | FNPT |
| Max. Fluid Temp. | 250 Degrees F |
| Vacuum Pressure | 29 in Hg |
| Body Material | Cast Iron |
| Float Material | 316 Stainless Steel |
| Standards | ASTM A126, Class B, FM, NSF61, UL Listed |
