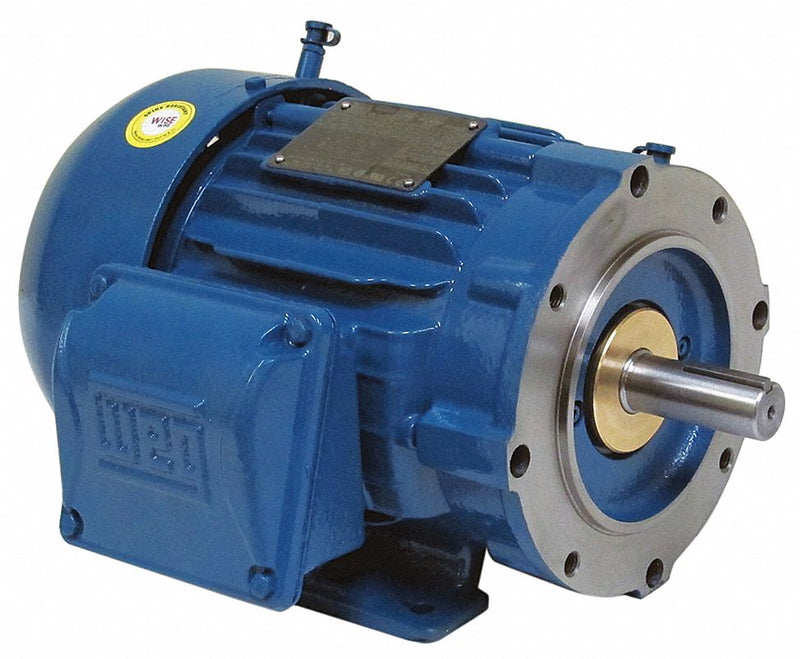

WEG 10 HP, General Purpose Motor, 3-Phase, 1765 Nameplate RPM, 575 Voltage, 215TC Frame - 01018ET3H215TC-W22

WEGSKU: C1487779
MPN : 01018ET3H215TC-W22
Weight : 88.2 lb

filler

Price:
$1,641.56 $2,647.68

Availability : Usually Ships in 10 Business Days

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 10; Nameplate RPM: 1765; Frame: 215TC; Voltage: 575; Hz: 60/50; Phase: 3; Full Load Amps: 9.9; No. of Speeds: 1; Motor Mounting Type: Rigid Base; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.25; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 3/8 in; Shaft Length: 3 3/8 in; Length Less Shaft: 16 1/8 in; Overall Length: 19 1/2 in; Motor Shaft Design: Keyed; Standards: CE, CSA, NOM, UL; Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 91.7 %; CC Number: CC029A; Manufacturers Warranty Length: 3 yr; Green Certification or Other Recognition: NEMA Premium(R) Rated

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP10
Nameplate RPM1765
Frame215TC
Voltage575
Hz60/50
Phase3
Full Load Amps9.9
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Length Less Shaft16 1/8 in
Overall Length19 1/2 in
Motor Shaft DesignKeyed
StandardsCE, CSA, NOM, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency91.7 %
CC NumberCC029A
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
