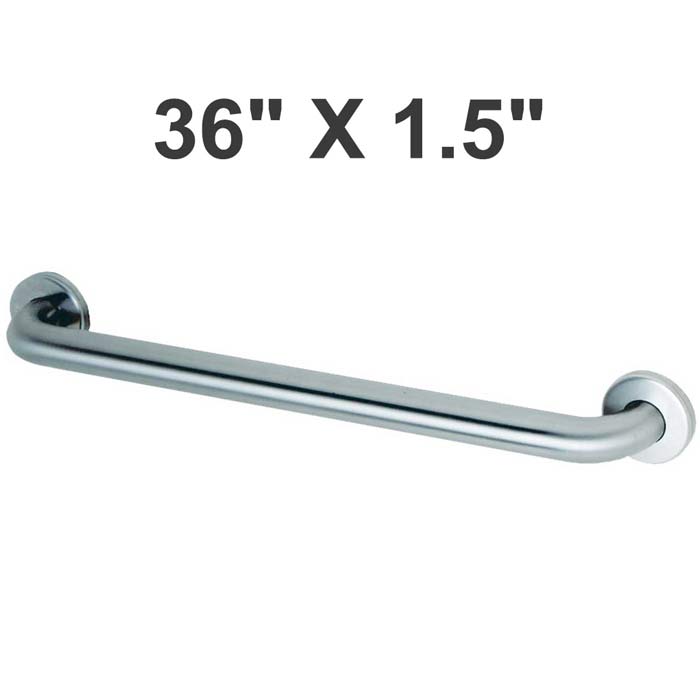

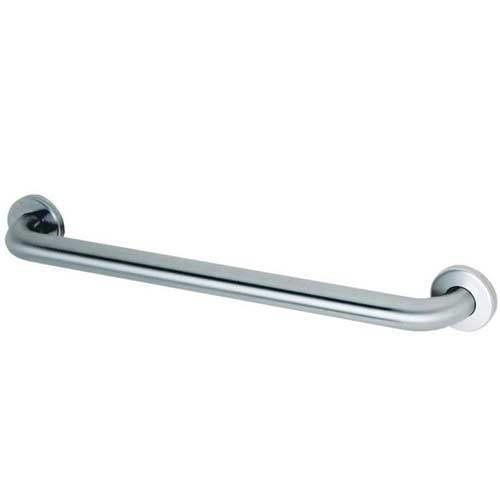

Compliant with ADA and other accessibility guidelines, Bobrick B-6806x36 Concealed Mounting With Snap Flange Grab Bar is one of the styles available in the 6806 Series from top commercial restroom accessory manufacturer Bobrick. Measuring 1-1/2 inches in diameter and 36 inches in length, the grab bar is fabricated from 18-gauge stainless steel. For a luminous, yet fingerprint-resistant surface, the stainless steel has a satin finish. The grab bar's cover, which conceals the installation screws, snaps onto the mounting flange and is made of 22-gauge stainless steel. For maximum durability, the grab bar travels through the mounting flange and is welded in place. The mounting flange measures 2 inches in width by 3-1/8 inches in height and is a stainless steel plate of 1/8 inches in thickness. The weight capacity of the Bobrick B-6806x36 Concealed Mounting With Snap Flange Grab Bar is 900 pounds, provided that you install the unit with a 1-1/2 inch clearance.Â
| Product Type | Grab Bar |
| Material | Stainless Steel |
| Nominal Size (In.) | 36" X 1.5" |
| Surface Type | Smooth |
| Length (In.) | 36" |
| Dia. (In.) | 1.5" |
| Total Recycled Content | 65% |
| Capacity | 900 lb. |
